R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator

Name: R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator
Brand: CBFI
Price: 9500 USD

R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator Manufactures

Brand Name : CBFI

Model Number : TV50

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Price : USD 9500~10000000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 50 to 60 sets/month

Delivery Time : 35 days after the deposit

Packaging Details : wooden case

Compressor : Germany compressor

tube ice diameter : 35mm, 28mm, 22mm

Evaporator : Stainless steel 304 seamless pipe

Cooling way : Water cooling

PLC : Siemens system

Origin : Guangzhou, China

Material : 304 Stainless steel

Refrigerant : R404A

Contact Now

Stainless steel evaporator energy saving 5 ton tube ice machine

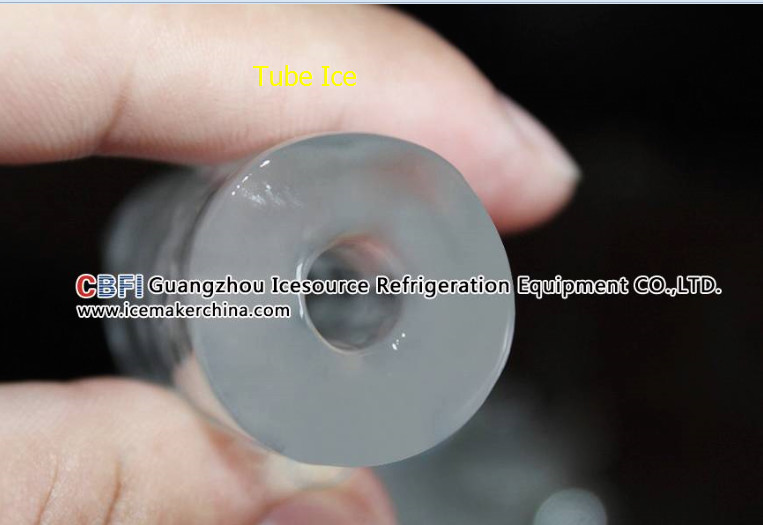

1. Edible and Transparent tube ice

R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator

2. CBFI tube ice machine pictures

R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator

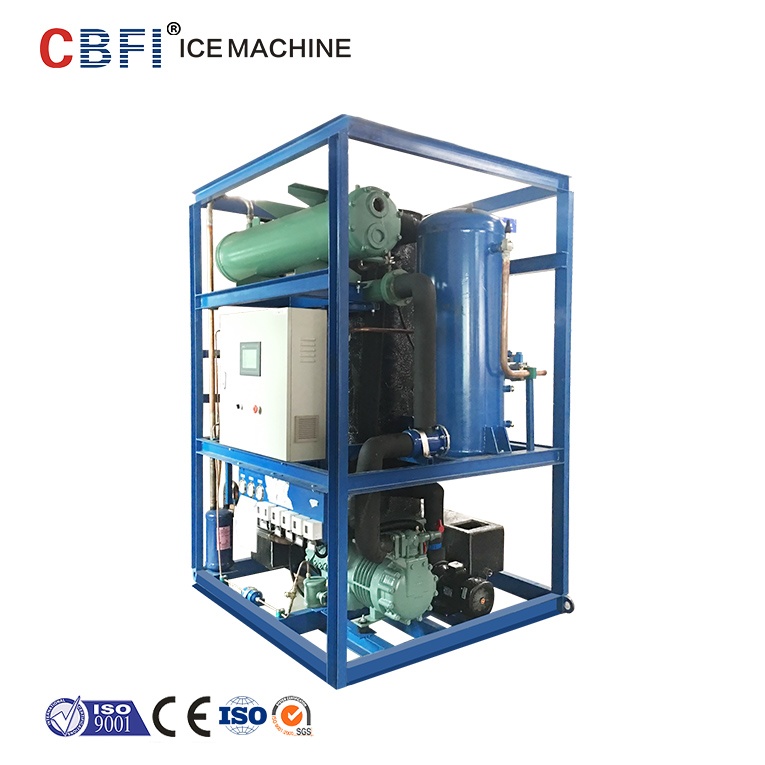

5 ton tube ice machine

R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator

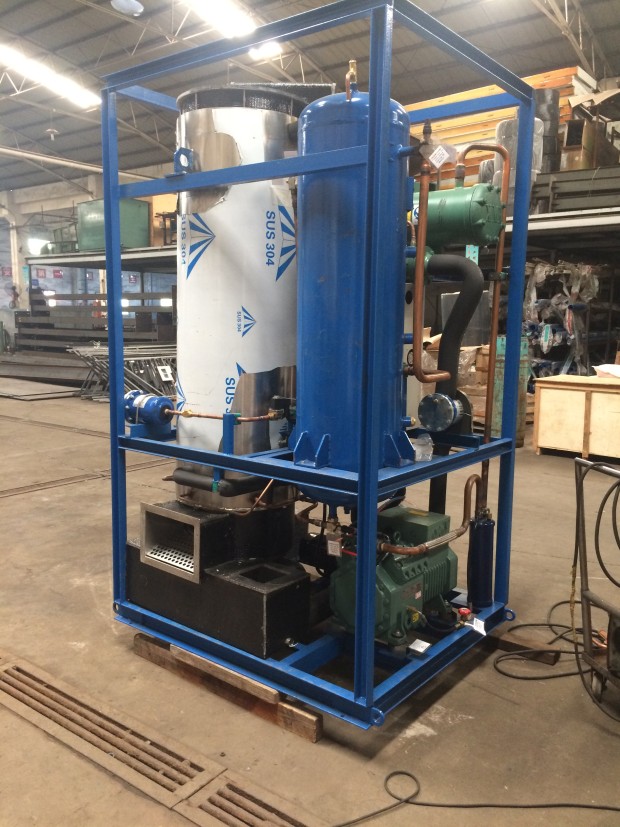

5 ton tube ice machine in our factory

3. Machine parameter

Model	Ice Making Capacity	Rated Power	Circulating Water Pump Power	Cooling Water Pump Capacity	Cooling Fan Capacity	Ice Cutter Motor	Dimension	Weight of Machine
No.	Ton/24h	kw	kw	kw	kw	kw	WHL(mm)	KG
TV10	1.0	4.28	0.55	1.1	0.18	0.75	11009001760	900
TV20	2.0	7.77	0.55	1.5	0.37	0.75	125010001950	1200
TV30	3.0	12.33	1.1	1.5	0.56	0.75	140011002200	1500
TV50	5.0	21	1.5	2.2	0.75	1.5	160014002250	1800
TV100	10.0	29.2	1.5	4	1.5	1.5	120012003100 230015501800	3500
TV150	15.0	49	2.2	5.5	1.5	1.5	150012004500 270019502250	4250
TV200	20.0	58.5	1.5	5.5	2.2	2.2	160013004700 310022002250	6500
TV300	30.0	87.6	2.2	15	2.2	2.2	300022002500 220019006200	7200

4. Application

6. Customer cases

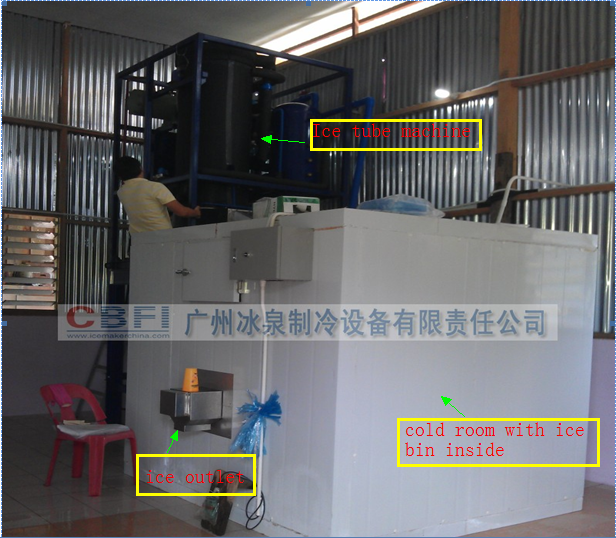

CBFI 5 ton tube ice machine in Malaysia

R404A Refrigerant 5 Ton Tube Ice Machine With Stainless Steel Evaporator
